LAUNCH CRP919 EV Diagnostic Tools For Energy Electric Vehicles All System + 43 Service + ECU Coding + Bidirectionnal Control + Battery Tester + CANFD DOIP FCA AUTOAUTH + 2 Years Free Update

LAUNCH CRP919 EV Supports 2 Years Free Update , Lifetime Free Use !!!

that mean after 2 years , CRP919 EV still can work , will not be locked , do not worry !

LAUNCH CRP919 EV Supports Language

English, French, Spanish, German, Italian, Russian, Portuguese, Japanese, Korean, Polish, Traditional Chinese

Solve language barriers, switch for free..

LAUNCH CRP919 EV Supports CANFD and DIOP protocol , it supports For GM after 2020 and other New cars ! Also Supports FCA AutoAuth !!!

CANFD :

it is the only product in this price range that is compatible with CAN-FD protocol and supports the latest For GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.

For Onix 2020-2024, For Tracker 2020-2024, For Suburban 2021-2024, For Tahoe 2021-2024, For Montana 2024, For Silverado 2024, For Electra E5 2024, For Escalade 2021-2024, For Escalade ESV 2021-2024, For Sierra 2024, For Yukon 2021-202.2/2024, For Yukon XL 2021-202.2/2024, and For Chrysler Models including For Grand For Cherokee(WL) 2021-20203, For Grand For Wagoneer 2022-2024

DOIP

With Diagnostics over DoIP, diagnostics introduced over UDS are used over TCP/IP and Ethernet. This enables much higher data rates than with CAN. That makes LAUNCH X431 PRO3S+ V5.0 SmartLink C HD save both in terms of time and expenses in the case of complex diagnostic tasks and flash applications. Compatible with For BMW (F&G chassis), For Volvo models (2018 later), For Land Rover & For Jaguar models (2017 later).

( Note : this is car list that CANFD and DIOP supports , X431 PRO3S+ SmartLink C HD also supports other cars , more than about 100+ brands , like for bmw , for vw , for ford etc , there has the detailed car list in the following description , you can check ）

FCA/SGW AutoAuth :

FCA SGW Access: For the 2018+ FCA vehicles (For Fiat, For Chrysler, For Jeep, For Alfa Romeo, etc.) equipped with the Security Gateway module, the LAUNCH X431 PRO3 ACE car scanner can help you to log in to the FCA account and perform diagnostic functions such as clearing DTCs, bi-directional tests, and calibrations.

For Renault SGW Access: Serve 2019+ For Renault SGW vehicles include for CLIO V, for CAPTUR II, for CAPTUR II CN, for MEGANE IV ph2, for ESPACE V ph2, for TALISMAN/SM6 ph2, for NEW ZOE, for ARKANA CN, for XM3/NEW ARKANA, for NEW SANDERO/LOGAN, etc. Unloking security gateway to perform service function, active test, coding, programming, etc.

Note : This Function need have the account in FCA Website first .

LAUNCH CRP919 EV Supports ECU Coding Function :

* Online Coding: this LAUNCH scan tool can directly access the online vehicle repair data to do high-level repairs.

* Offline Coding: read the code from the original module, and then write the code for the new module,for example ,write a VIN to new ECU.

* Component Matching:Matching,relearn ,Cali-b-ration, or initia-lization adaptive data for certain components after repair or replacements,such as: suspension cali-bration ,seat matching ,sunroof initia-lization,gearbox matching,injector cali-bration, transmission adap-tion.Delete Adapt-ation Data, Tank Cali-b-ration,Height sensor system cali-bration,PSM Sensor Cali-b-ration ,etc.

* Re-trofit/Modi-fication: for example, re-trofit battery with different type, Upgrading the headlights, taillights, and interior lighting to LED lights,etc.

* Unlock the hidden features:for example,disable auto start-stop, disable daytime running light, disable safety belt chiming ,delete transport mode,delete transmission adaptive value.setting speed limits,etc.

LAUNCH CRP919 EV Supports Active Test & Bi-directional control

Bi-Directional Control capability and is capable of performing Active Tests to access vehicle-specific subsystems and component tests. The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators .For example , x431 v have the ability to actuate relays, injectors, coils, or perform system tests, etc. Also it will actuate solenoids valve and actuators for active testing to identify the error easily moreover. The bidirectional functions are quite extensive. even open an e.g.r. valve and seeing the difference in idle response and oxygen sensor voltage. Please note: Active tests are NOT universal for all vehicles, check compatibility with VIN number before purchase. Active tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu.

LAUNCH CRP919 EV Supports Full System Diagnose Function

The Full Systems of the car mainly including Drive System, Chassis System, Body System, Electrical system :

1.PCM(Drive System): Engine, Transmission, Transfer case, Electrical Machine Electronics, Fuel Pump, Gear, and more...

2. Chassis System: Accumulator Management Electronics, Steering, Integrated Chassis Management, Tyre Pressure Control, Active Cruise Control, Braking System, Suspension, TPMS and more...

3.BCM(Body System): SRS Airbag, Camera, Audio Radio, Gateway, Cluster Dashboard, Rain Sensors, Charging Interface Module, Parking Assistance, Power Control Unit, Touch box, Light, Battery Charging System, Head up Display, Wipe Control System, Roof, Seat & Door Motor system, Immobilizer, ABS ESP system, Air Condition.Electric Windows, Telephone, and more...

4.Electrical System: Including Centralized control system for engine and power transmission, Chassis integrated control and safety system, Intelligent body electronic system, Communication and information / entertainment system.

It supports the detailed Function :

--read fault codes: read and decode the DTCs to identify where the fault location is;
--clear fault codes: erase the DTCs to turn off the MIL after repairs;
--retrieve ecu information: allows you to retrieve vehicle information;
--Graph live data stream: view the dynamic data stream to determine vehicle condition
--ECU Coding : Match, learn, or code the new ECU; Customize your car, unfold the hidden features, or disable the annoying functions; Reprograms the adaptive data for certain components after repairs.
--Active Test ( Bi-directionnal Control ) : Actuate solenoids and actuators for active testing, send commands to systems/components to test their working status, without using the vehicle controls.

With the Diagnose Function , you can enhance performance, save energy, reduce emissions and more as following:

For Engine: detect common issues as Poor lubrication, Failing oil pump, Oil deposits and debris, Inadequate fuel and air compression, Leaking engine coolant, Blocked engine radiators, Prolonged engine detonation, Damaged oxygen sensors, Aged spark plugs, etc.

For SRS: pinpoint the trouble area as: a bad seat belt, a corroded crash sensor, or some water intrusion in a connector, etc.

For ABS: diagnose Blown sensor fuse, Low brake fluids, and Faulty sensor, etc.

For Transmission: avoid Grinding or shaking sensation in gear, Whining, humming or clunking noises, Burning smells, Gears Slipping, Low or Leaking Transmission Fluid, etc.

For TPMS: verify problems of Low tire pressure, Faulty in tire pressure monitor control module, Unknown tire sensor, Failure to identify tire sensor, etc.

LAUNCH CRP919 EV Supports 2 Battery Pack Diagnose Function :

it supports diagnose for BYD and CATL battery packs !!!

LAUNCH CRP919 EV supports 43+ Kinds of Special Reset Service Functions

( pls note different reset function supports different cars , also supports some cars , not for all cars , pls contact us check the detailed car list , you also can check in the link directly  : https://qcar.x431.com/qcar/#/pc/index?q=eyJsYW4iOiIxMDAyIn0%3D ）

1> Steering Angle Calibration

This function enables you to reset the steering angle,after replacing thesteering angle position sensor,replacing steering mechanical parts (such assteering gearbox,steering column, end tie rod, steering knuckie), performingfour-wheel alignment, or recovering car body.
To reset the steering angle, first find the relative zero point position for thecar to drive in straight line. Taking this position as reference,the ECU cancalculate the accurate angle for left and right steering.

2> Electronic Parking Brake Reset

This function enables you to reset the brake pad after replacing the brake pad.lt needs to be performed in the following cases:
1.The brake pad and brake pad wear sensor are replaced.
2.The brake pad indicator lamp is on.
3.The brake pad sensor circuit is short, which is recovered.4.The servo motor is replaced.

3> Gear Learning

This function enables you to perform tooth learning for the car, to turn off the MIL.
lt needs to be performed in the following cases:
1. After the engine ECu, crankshaft position sensor, or crankshaft flywheel isreplaced.
2. The DTC 'tooth not learned' is present.

4> Oil Reset Service

This function enables you to reset the oil service for the engine oil life system,which calculates an optimal oil life change interval depending on the vehicle driving conditions and weather events.
lt needs to be performed in the following cases:
1. lf the service lamp is on, run car diagnostics first for troubleshooting.Afterthat, reset the driving mileage or driving time, so as to turn off the servicelamp and enable a new driving cycle.
2. lf the service lamp is not on, but you have changed the engine oil or electric
appliances that monitor oil life, you need to reset the service lamp.

5> IMMo Service

This function enables you to perform the anti-theft key matching function, sothat the immobilizer control system on the car identifies and authorizes remotecontrol keys to normally use the car.
lt needs to be performed in the following cases:
When the ignition switch key, ignition switch,combined instrument panel,ECU,BCM, or remote control battery is replaced.

6> Injector Coding

This function enables you to write injector actual code or rewrite code inthe ECU to the injector code of the corresponding cylinder，so as to moreaccurately control or correct cylinder injection quantity.
lt needs to be performed in the following cases:
After the ECu or injector is replaced.

7> Tyre Reset

This function is used to set the size parameters of the modified or replacedtire.

8> Battery Maintenance System Reset

This function enables you to perform a resetting operation on the monitoringunit of vehicle battery, in which the original low battery fault information will becleared and battery matching will be done.
lt needs to be performed in the following cases:1. The main battery is replaced.
2. The battery monitoring sensor is replaced.

9> ABS Bleeding

This function allows you to perform various bi-directional tests to check theoperating conditions of Anti-lock Braking System(ABS).
lt needs to be performed in the following cases:
1. When the ABS contains air.
2. When the ABS computer, ABS pump, brake master cylinder, brake cylinder,brake line, or brake fluid is replaced.

10> Electronic Throttle Position Reset

This function enables you to make initial settings to throttle actuators andreturns the learned values stored on ECU to the default state. Doing so canaccurately control the actions of regulating throttle (or idle engine) to adjust theamount of air intake.

11> Diesel Particulate Filter (DPF) Regeneration

This function enables you to clear PM(Particulate Matter) from the DPF filterthrough continuous combustion oxidation mode (such as high temperatureheating combustion,fuel additive or catalyst reduce PM ignition combustion)to stabilize the filter performance.
lt needs to be performed in the following cases:
1. The exhaust back pressure sensor is replaced.
2. The PM trap is removed or replaced.
3. The fuel additive nozzle is removed or replaced.
4. The catalytic oxidizer is removed or replaced.
5. The DPF regeneration MlL is on and maintenance is performed.
6. The DPF regeneration control module is replaced.

12> Suspension Calibration

This function enables you to adjust the height of the body.
lt needs to be performed in the following cases:
1. When replacing the body height sensor， or control module in the airsuspension system.
2. When the vehicle height is incorrect.

13> AFS (Adaptive Front-lighting System) Reset

This function enables you to initialize the adaptive headlamp system.

14> Sunroof Initialization

This function enables you to set the sunroof lock off,closed when it rains,sliding / tilting sunroof memory function, temperature threshold outside the caretc.

15> Gearbox Matching

This function enables you to complete the gearbox self-learming to improvegear shifting quality.
lt needs to be performed in the following cases:When the gearbox is disassembled or repaired.

16> EGR Adaption

This function is used to learn the EGR(Exhaust Gas Recirculation) valve afterit is cleaned or replaced.

17> Language Change

This function is used to change system language of vehicle center console.

18> AF Reset

This function is applied to set or learn airlfuel rate parameters.

19> Coolant Bleed

Use this function to activate the electronic water pump before venting thecooling system.

20> NOx Sensor Reset

NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) inengine exhaust. lf the NOx fault is re-initialized and the NOx catalytic converteris replaced, it is necessary to reset the catalytic converter learned value storedin the engine ECu.

21> Seats Calibration

This function is applied to match the seats with memory function that arereplaced and repaired.

22> StoplStart Reset

This function is used to open or close the automatic StartStop function viasetting the hidden function in ECU (The precondition is vehicle equipped withhidden function and hardware support).

23> Transport Mode

To lower vehicle power consumption, user may perform the following operations: limit vehicle speed, not wake up the network for door open anddisable remote key etc. In this case, deactivating transport mode is needed torecover vehicle being normal.

24> TPMS RESET FUNCTION

25> Windows Calibration

This function is used to perform door window matching to recover the ECuinitial memory, and recover the automatic ascending and descending functionof power window.

26> AdBlue Reset (Diesel Engine Exhaust Gas Filter)

After the diesel exhaust treatment fluid (car urea) is replaced or filled up, ureareset operation is required.

27> A/C System Initialization

AC system releam/initialization must be performed when the vehicle AC ECUor actuator is replaced or the ECu memory is lost.

28> Intelligent Cruise Control System Reset

This function is used to matching the intelligent cruise control module after it isreplaced or repaired.

29> Engine Power Balance Monitoring

This function is used to monitor crankshaft acceleration in the power stroke ofeach cylinder, to determine the relative power provided by each cylinder.

30> Motor Angle Calibration

This function is used to perform the motor angle calibration when the rotorposition detected by the motor angle position sensor is different from theactual rotor field position.

31> High Voltage Battery Detection

This function is used for high voltage battery diagnosis and status informationdetection.

32> Gas Particulate Filter (GPF) Regeneration

This function is used to perform the GPF replacement or regeneration after the fuel consumption is increased and engine output power is reduced resultingfrom a long time service of the GPF.

33> High voltage power outage (new energy)

34> Relative compression (new energy)

35> ECU Reset

36> FRM Reset

37> CLUTCH Reset

38> GATE Reset

39> TURBO Reset

40> RLSENSOR Reset

41> DCDC Test (new energy)

42> OBC Test (new energy)

43> Coolant replacement (new energy)

LAUNCH CRP919 EV Supports Other Function :

it supports Battery voltage detection, diagnostic report viewing, diagnostic record playback, screenshot and sharing, software purchase in the mall

LAUNCH CRP919 EV Supports Car List :

AUTOSEARCH, BMS_For BYD, BMS_For CATL, DEMO, ECUAID, EOBD2, EV_For AIWAYS, EV_For AUDI, EV_For BAIC, EV_For BENZ, EV_For BJXD, EV_For BMW, EV_For BORGWARD, EV_For CG, EV_For CHANGAN, EV_For CHANGCHENGZY, EV_For CHDAIHATSU, EV_For CHENGSHI, EV_For CHRYSLER(For Chrysler/For Dodge/For Jeep), EV_For CHUANQIZY, EV_For CHZY, EV_For CITROEN(For Citroen/Dongfeng For Citroen), EV_For COWINZY, EV_For DAYUN, EV_For DENZA, EV_For DFAC, EV_For DFBF, EV_For DFFXZY, EV_For DFJF, EV_For DFXK, EV_For DNAEV, EV_For DONGNAN, EV_For ENOVATE, EV_For FIAT, EV_For FLYER, EV_For FUTIAN, EV_For GM(For GM/For Buick/For Cadillac/For Chevrolet), EV_For HANTENGZY, EV_For HCXR, EV_For HCXY, EV_For HMAZDA, EV_For HONDA(For Honda/For Acura/Dongfeng For Honda/GAC For Honda), EV_For HTJT, EV_For HUACHENZY, EV_For HYCAN, EV_For HYPP, EV_For HYUNDAI(For Hyundai/For Genesis), EV_For JAC, EV_For JETOUR, EV_For JIACHUANZY, EV_For JILIZY, EV_For JINLONG, EV_For JMEV, EV_For JOYLONG, EV_For JPISUZU, EV_For JUMA, EV_For KANDIZY, EV_For KARRY, EV_For KAWEIZY, EV_For KIA, EV_For LANDROVER(For Land Rover/For Jaguar), EV_For LEAP, EV_For LEVDEO, EV_For LIEBAOZY, EV_For LIFAN, EV_For LINGBOX, EV_For LINGTU, EV_For LIUWEI_TY, EV_For LIXIANG, EV_For LUFENG, EV_For LUTONG, EV_For LUXGEN, EV_For MAXUS, EV_MAZDA(For Mazda/China For Mazda), EV_For MITSUBISHI(For Mitsubishi/For Mitsubishi Guangqi), EV_For NETA, EV_For NIO, EV_For NISSAN(For Nissan/For Infiniti/Dongfeng For Nissan/For Venucia), EV_For OPEL, EV_For PEUGEOT(For Peugeot/Dongfeng For Peugeot), EV_For POCCO, EV_For PORSCHE, EV_For QIANTU, EV_For QINGYUAN, EV_For QIRUIXNYZY, EV_For RENAULT, EV_For RIICH, EV_For RUICHI, EV_For SAICMG, EV_For SAICROEWE, EV_For SEAT, EV_For SERES, EV_For SGM(China For GM/For Buick/For Cadillac/For Chevrolet), EV_For  SHENHE, EV_For SHVW, EV_For SINOGOLDZY, EV_For SKODA, EV_For SKYWELL, EV_For SKYWELLZY, EV_For SMART, EV_For SPRINTER, EV_For SUDA, EV_For TESLA, EV_For TJYQZY, EV_For TOYOTA(For Toyota/For Lexus/China For Toyota), EV_For TRUMPCHI, EV_For USAFORD(For Ford/For Lincoln/China For Ford), EV_For VOLVO(For Volvo/For Lynk & Co/For Polestar), EV_For VW(For VW/For VW Commercial Vehicle/For MAN TGE), EV_For WM, EV_For XINTE, EV_For XP, EV_For XVISTA, EV_For YINLONG, EV_For YOGOMO, EV_For YQJC(For FAW Bestune/For Hongqi), EV_For YQVW, EV_For YUDO, EV_For YUEDA, EV_For YUEJINZY, EV_For ZEEKR, EV_For ZHIDOU, EV_For ZHIJUNZY, EV_For ZHONGTAI, EV_For ZHONGTONG, EV_For ZHONGXINGZHY, EV_For ZZNISSANZY, EV_For ZHIDAOZY

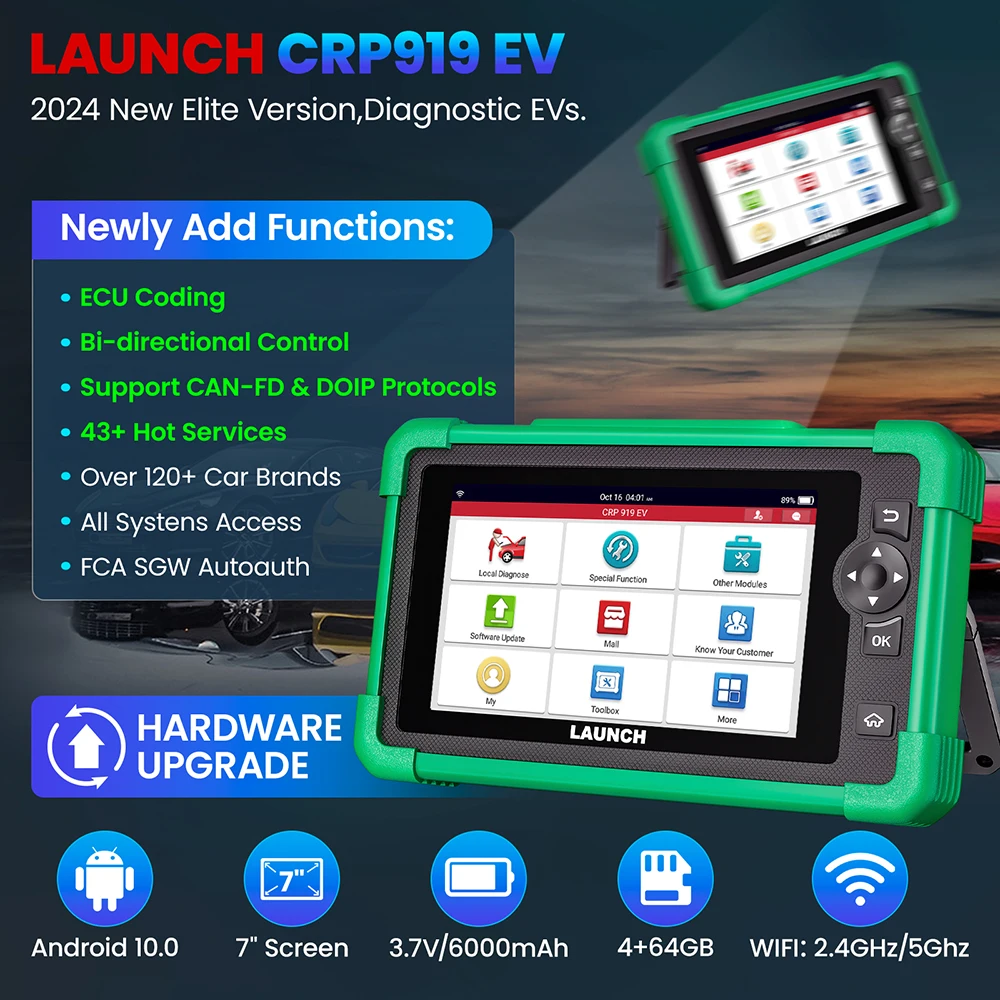

LAUNCH CRP919 EV Parameter :

Screen size: 7 inches (1024*600)
Processor: 2.0GHz
Android version: Android 10.0
Battery capacity: 3.7V/6000mAh
Running memory: 4 GB
Storage size: 64 GB (system display 25 GB)
Main line length: 116cm (main line with DOIP function)
Upgrade method: (WIFI) online upgrade
Main line interface: DB15 (dual row) → OBDII 16PIN
WIFI: 2.4GHz/5Ghz
Bluetooth: Bluetooth function (For tire pressure gun)
Charging power: 5V 2A (10W)

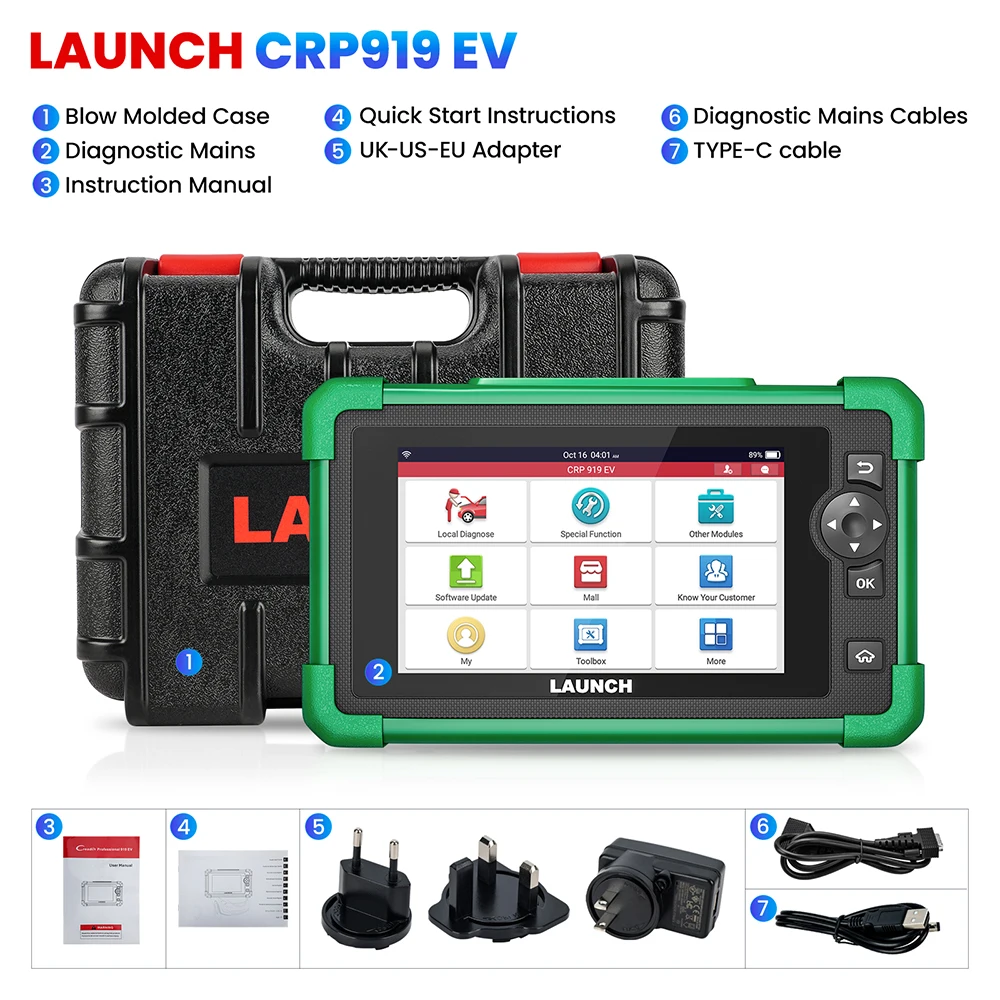

LAUNCH CRP919 EV Packing List :

1pc * CRP919 EV Main Unit
1pc * Main Cable ( supports DOIP Function )
1pc * USB Cable
1pc * Charger plug ( US Plug , UK Plug , EU Plug )
1pc * User Manual
