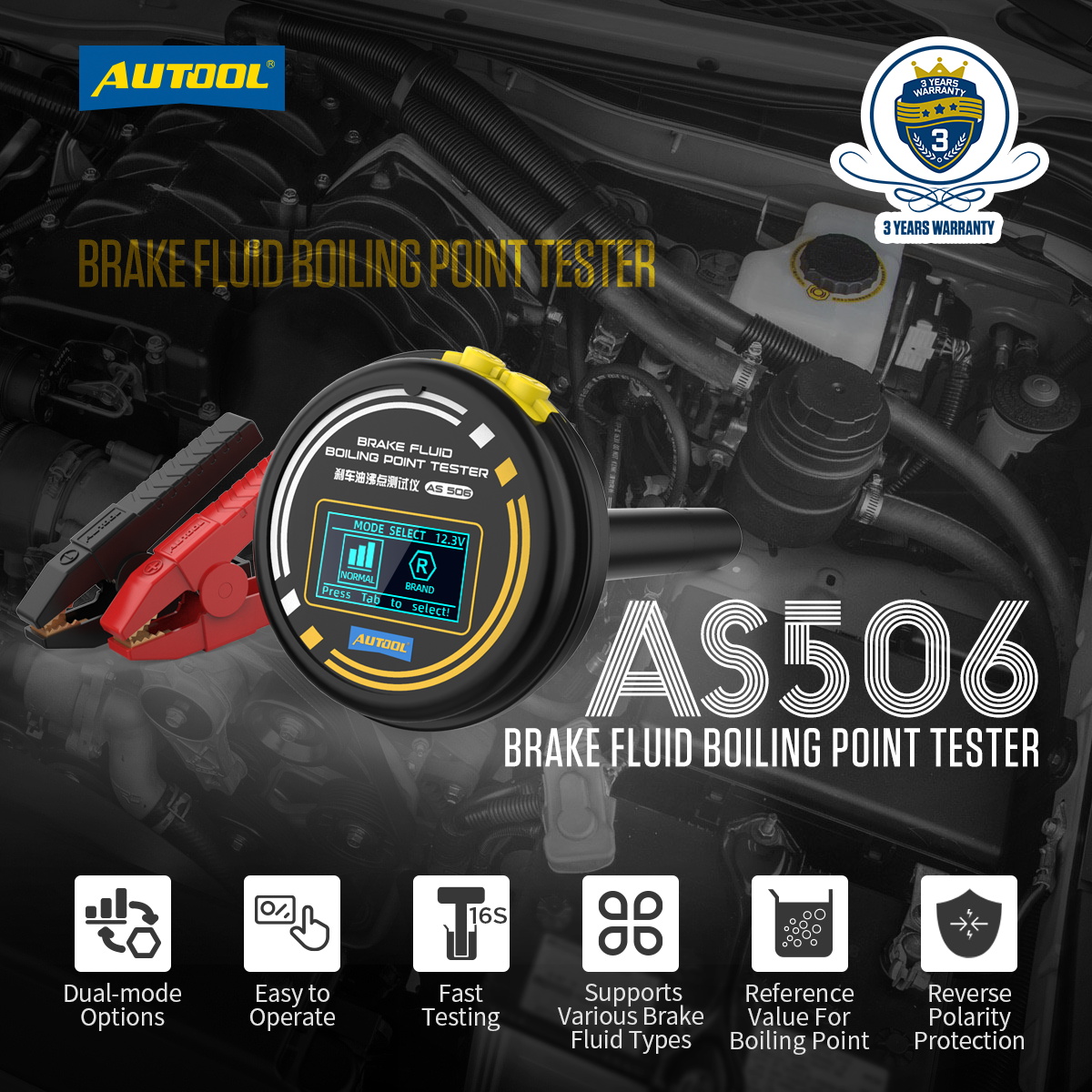

联系客服AUTOOL AS506 can be used to detect brake fluid DOT 3, DOT 4, DOT4+, DOT4ESP, DOT 5, DOT 5.1, DOT5.1ESP, ENV4, and ENV6. Users can set the detection parameters according to their detection requirements. This product covers 14 popular brands in the market: ATE、TRW、BOSCH、MOBIL、TOTAL、FUCHS、MOTUL、DELPHI、KUNLUN FERODO、BREMBO、TEXTAR、MONARCH、CHANGCHENG.
Dual mode selection: Dual mode selection offers a general mode for 9 types of oil detection and a brand mode for 14 types. Two modes and two displays provide you with a clearer display.
Fast detection: Evaluate the oil status in just 16 seconds, delivering accurate performance data efficiently.
Simple operation: The screen will prompt the operation, which is clear and easy.

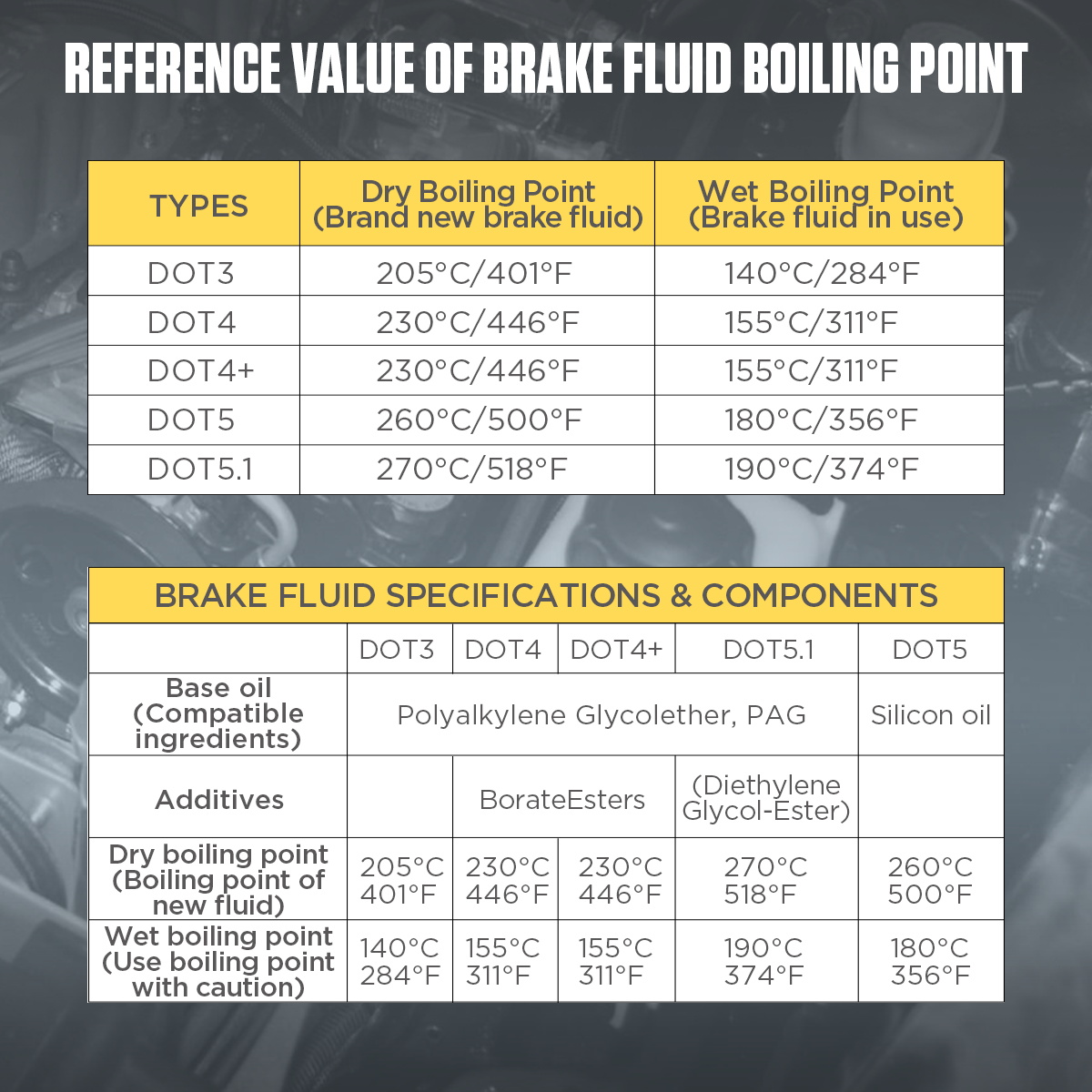

Wide range of applications: It is suitable for detecting different types of brake fluid. Quickly and accurately obtain the brake fluid’s minimum boiling point, with official dry and wet values for reference.
Boiling point detection: The device detects boiling points with a temperature range of 0-320°C (0-608°F), offering wide measurement capability.
Three-Year Warranty, Lifetime Maintenance: For damage caused by non-human factors, AUTOOL promises to resend parts for free within 3 years. You are warmly welcome to contact us with any needs, and we will get back to you ASAP within 24 hours.

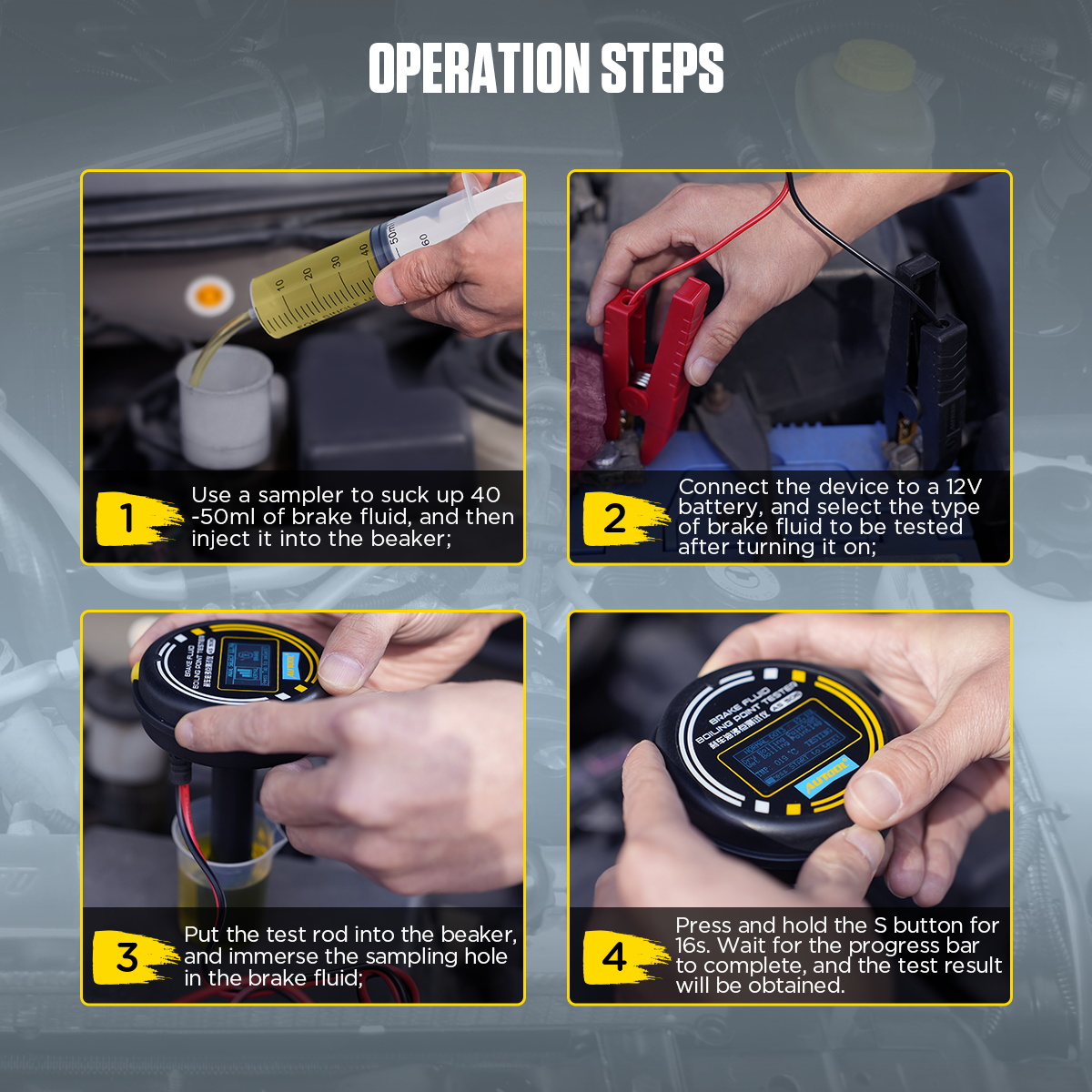

Use a sampler to suck up 40-5Oml of brake fluid, and then inject it into the beaker;
Connect the device to a 12V battery, turn it on, and select the brake fluid type to test.
Put the test rod into the beaker, and immerse the sampling hole in the brake fluid;
Press and hold the S button for 16s. Wait for the progress bar ‘to complete, and the test result will be obtained.
Applicable brake fluid types: DOT 3, DOT 4, DOT4+, DOT4ESP, DOT 5, DOT 5.1, DOT5.1ESP, ENV4, ENV6.

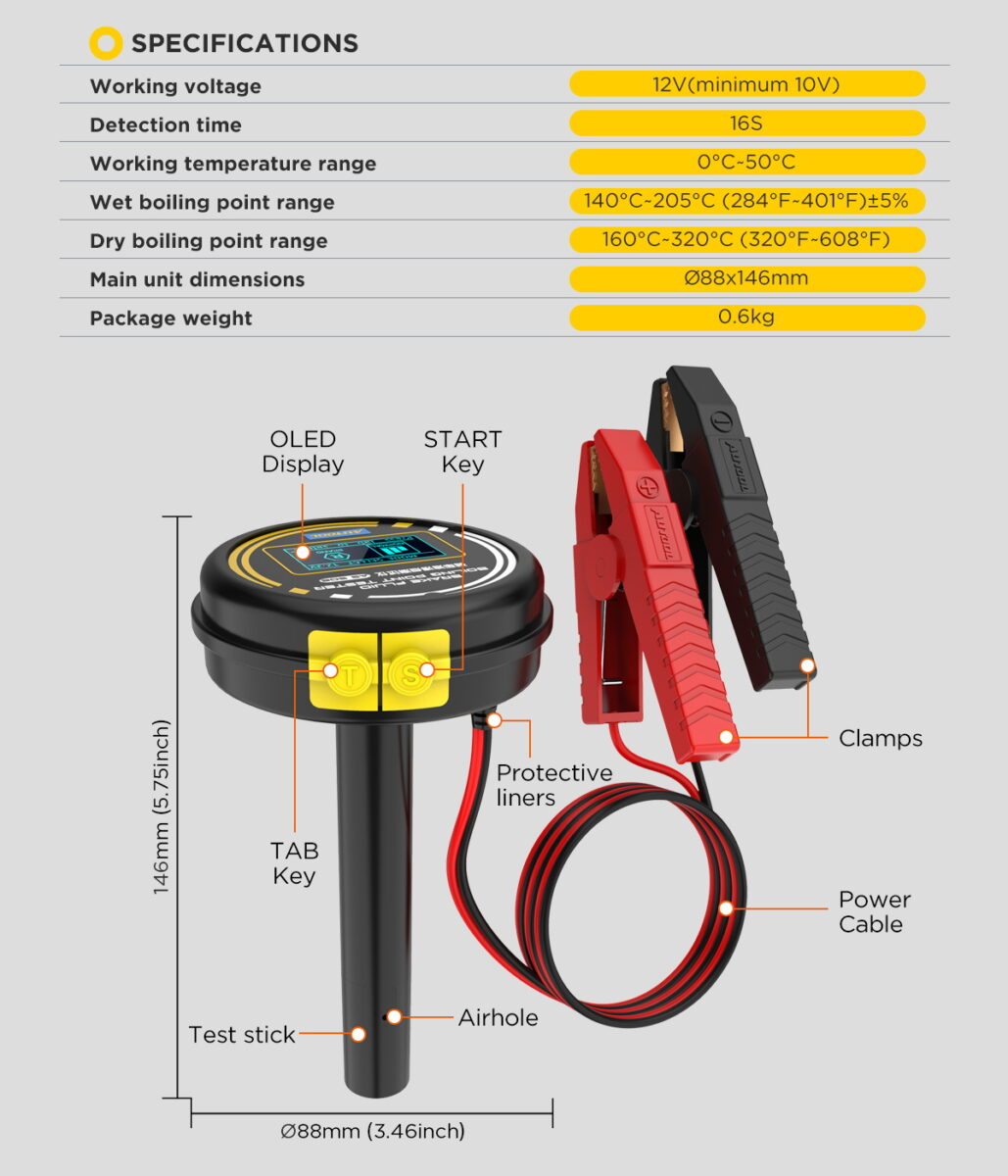

Wet boiling point range: 140 °C ~ 205°C (284°F ~ 401°F) ±5%
Dry boiling point range: 160 °C ~ 320 °C (320 °F ~ 608 °F)
Working Voltage: 12 V, minimum 10 V
Detection time: 16 seconds
Working temperature range: 0 °C ~ 50 °C
